File (1:20 Wall Section + Elevation) available for download

External View Street Visual Form Alcester Road

Growing Space Collage Concept Visual

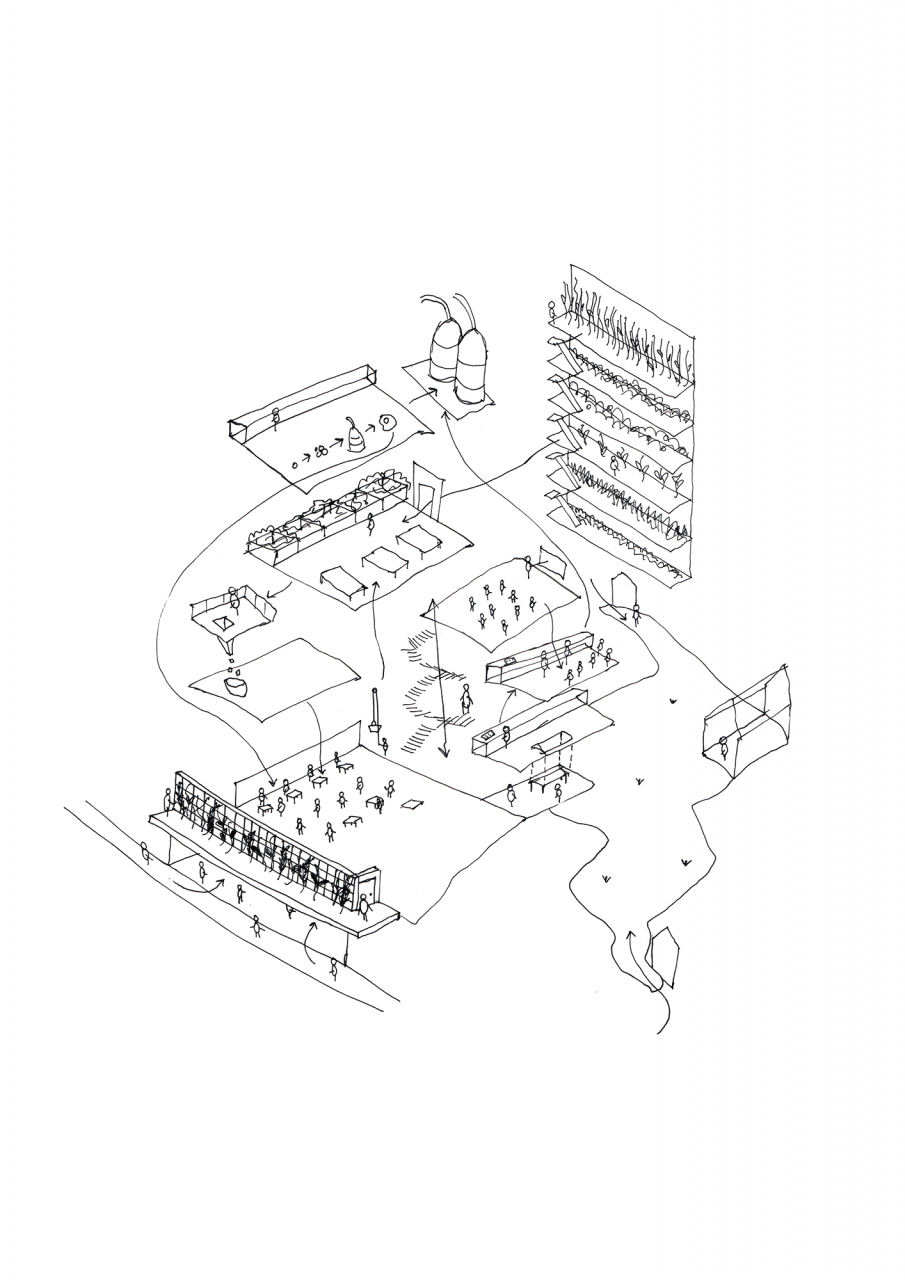

Illustrated Brief - This illustrated brief show the essence of which my project aims to achieve. Engaging the community through a series of informal and formal education spaces.

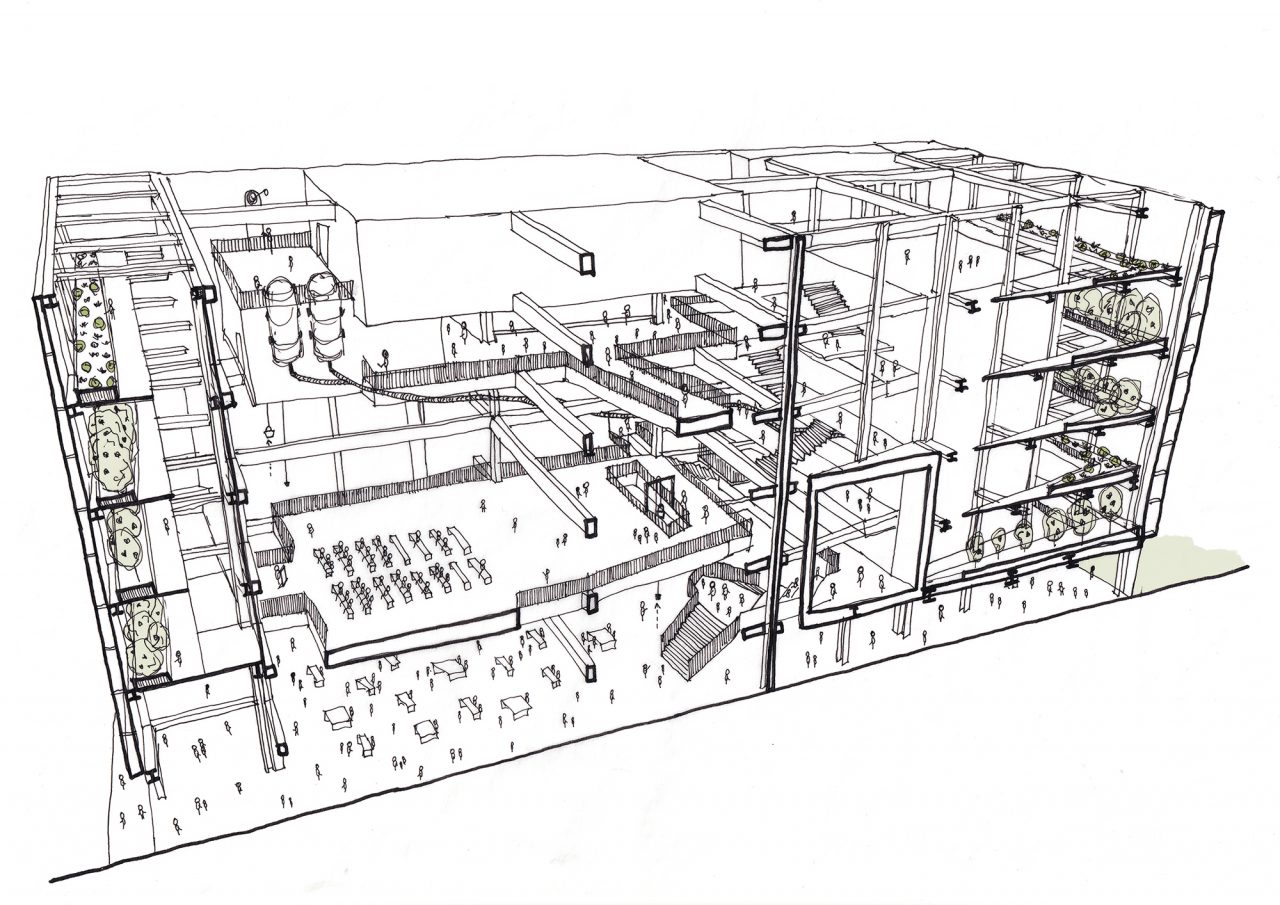

Sectional Development Sketch

Cast Soap Concept Model - Atmospheric concept model.

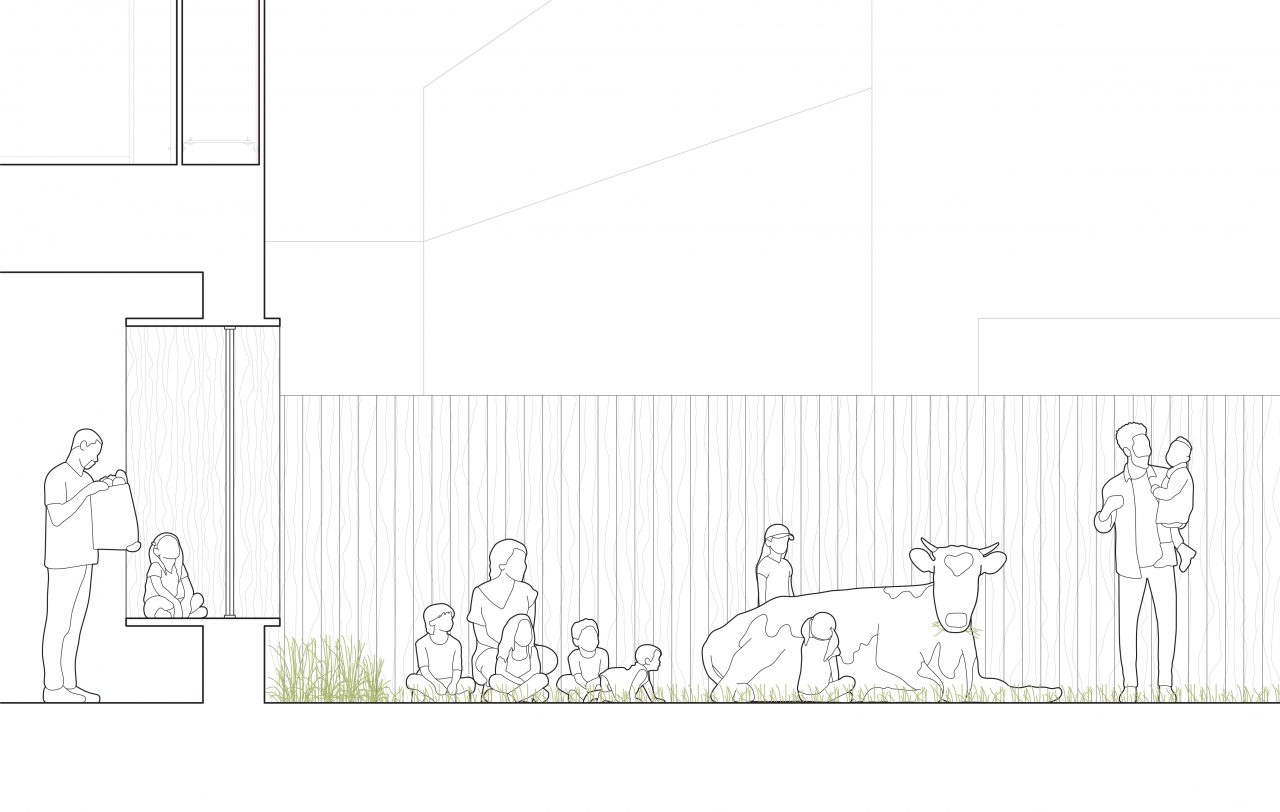

Line Graphic Visual Daisy With Children - Line graphic visual showing children and families interacting with daisy the cow, based on ideas of Sitopia.

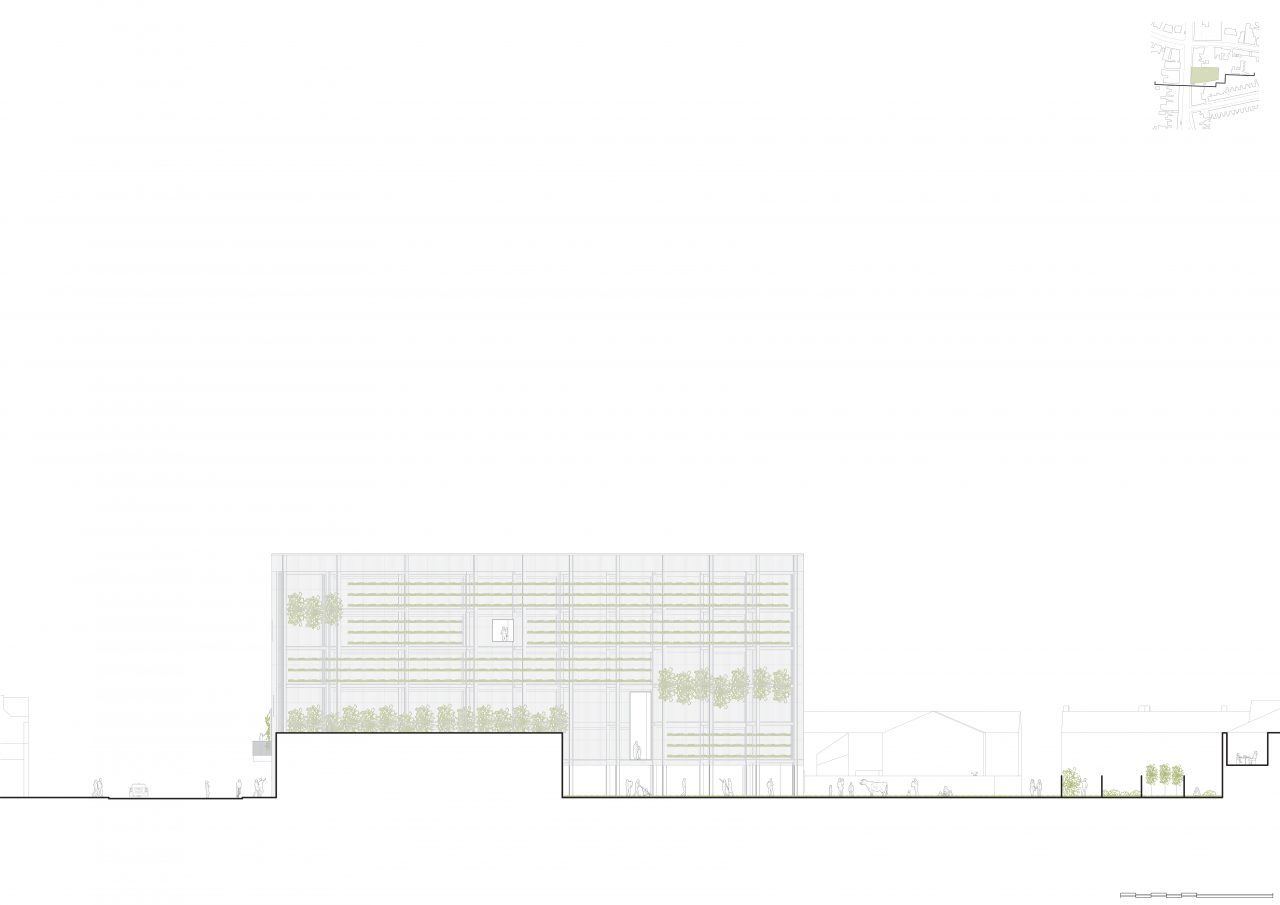

South Elevation

1:20 Wall Section + Elevation - Section through growing structure and elevation of external growing structure on former co-op facade.

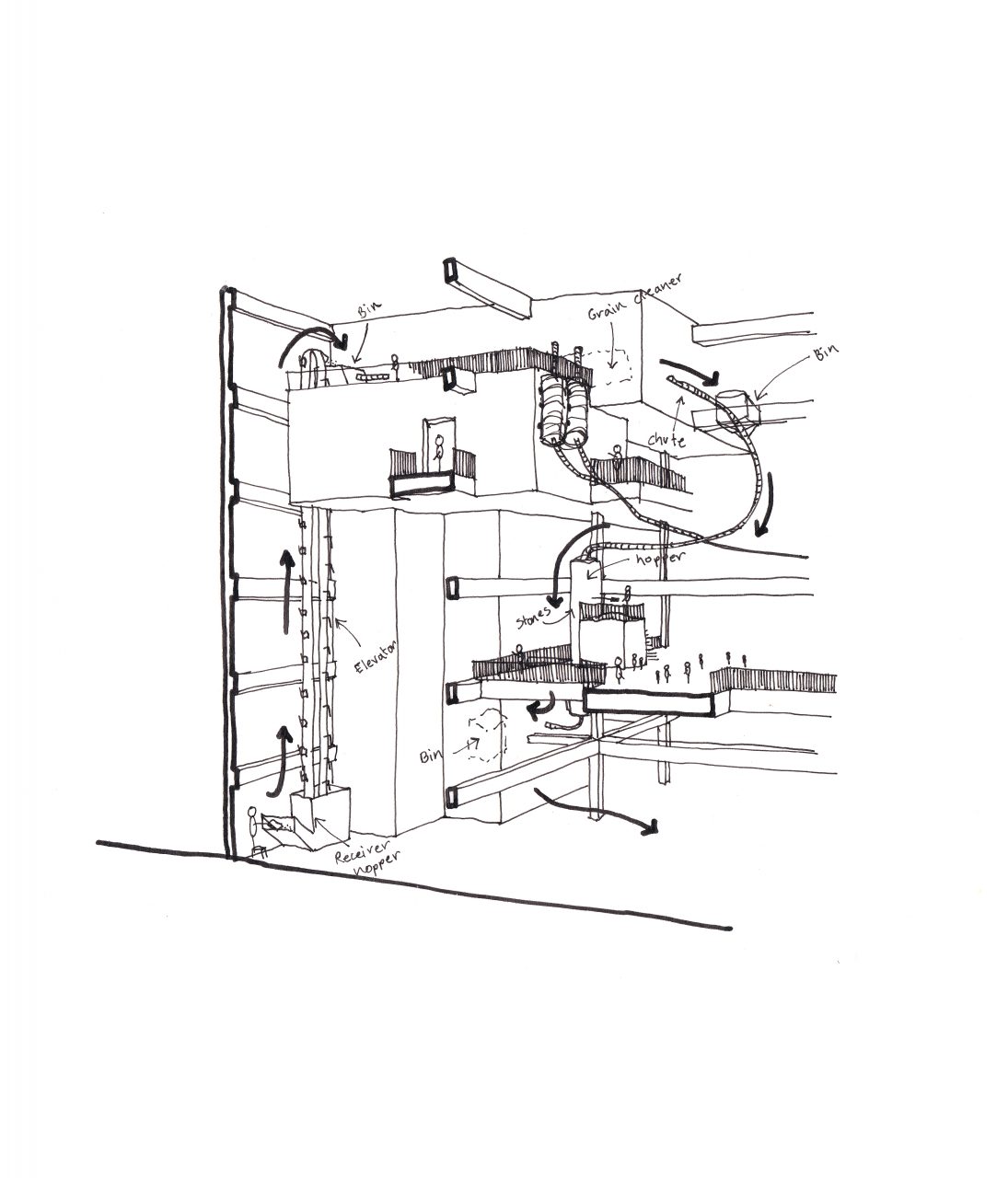

Community Wheat to Flour Process - I have taken the essence of the Oliver Evans Mill precedent and implemented the key ideas into the hub.
